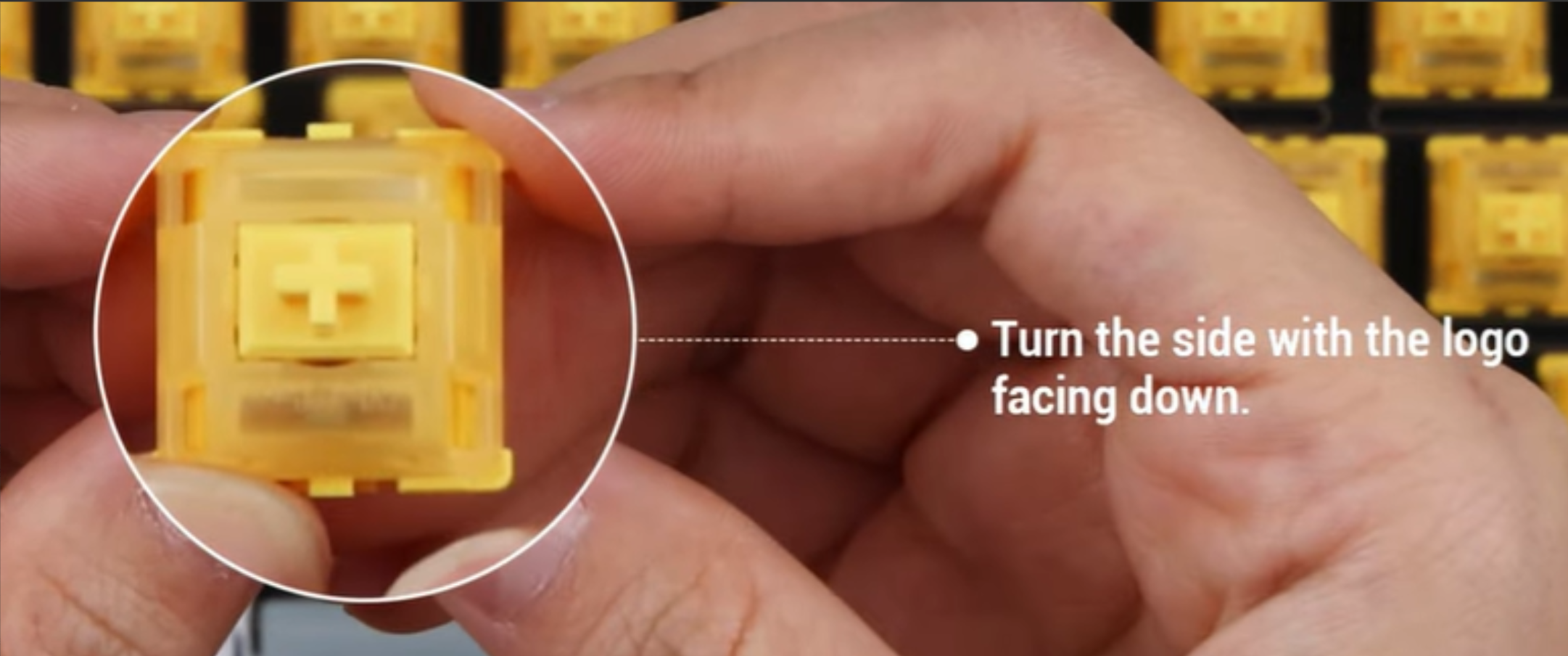

1. Check the Switch Orientation
Before installing, make sure the logo on the switch is facing downwards. This ensures the switch is aligned correctly with the PCB.
Before installing, make sure the logo on the switch is facing downwards. This ensures the switch is aligned correctly with the PCB.

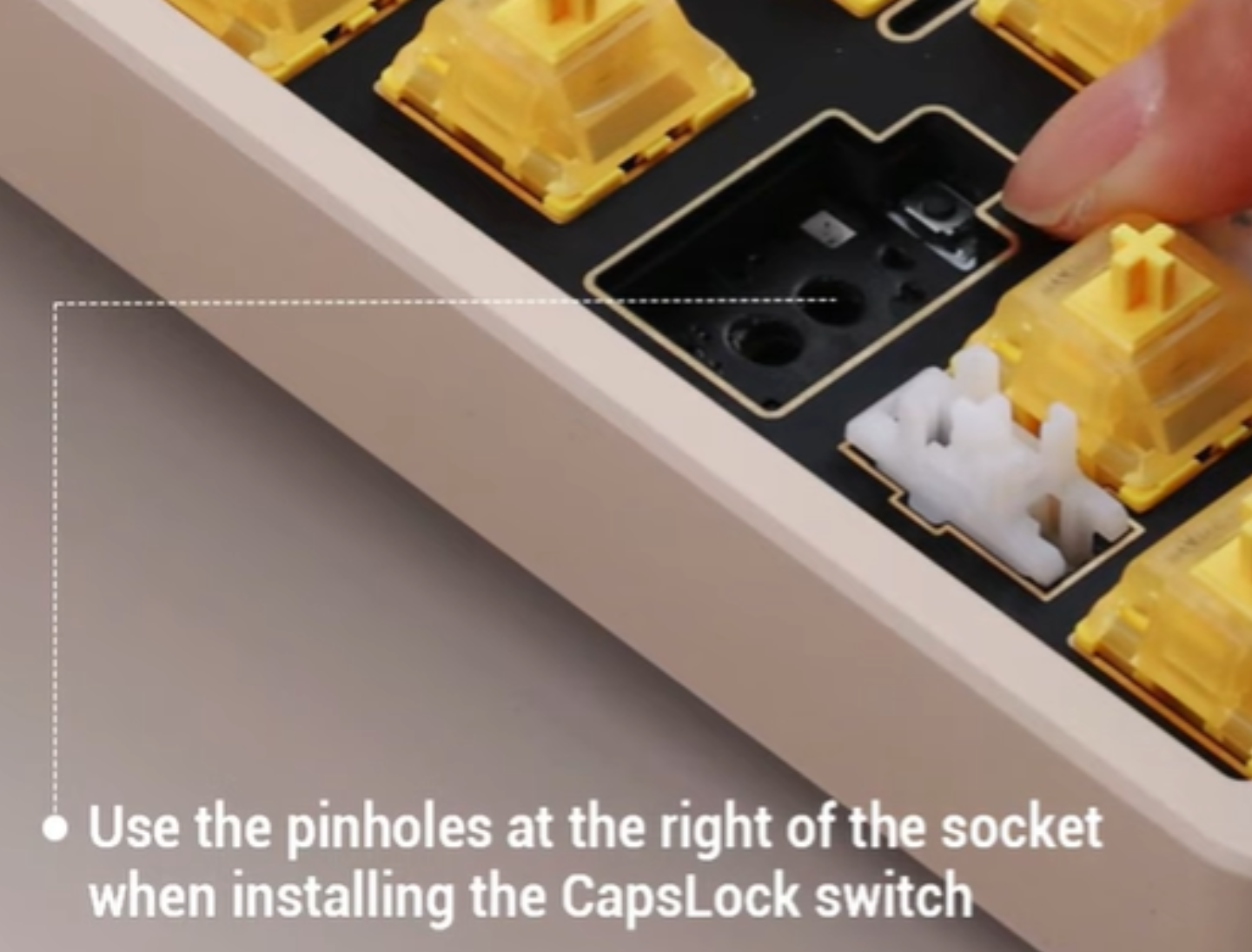

2. Position the Switch
Align the switch and insert it into the designated slot located to the right of the CAPS LOCK key.
Align the switch and insert it into the designated slot located to the right of the CAPS LOCK key.

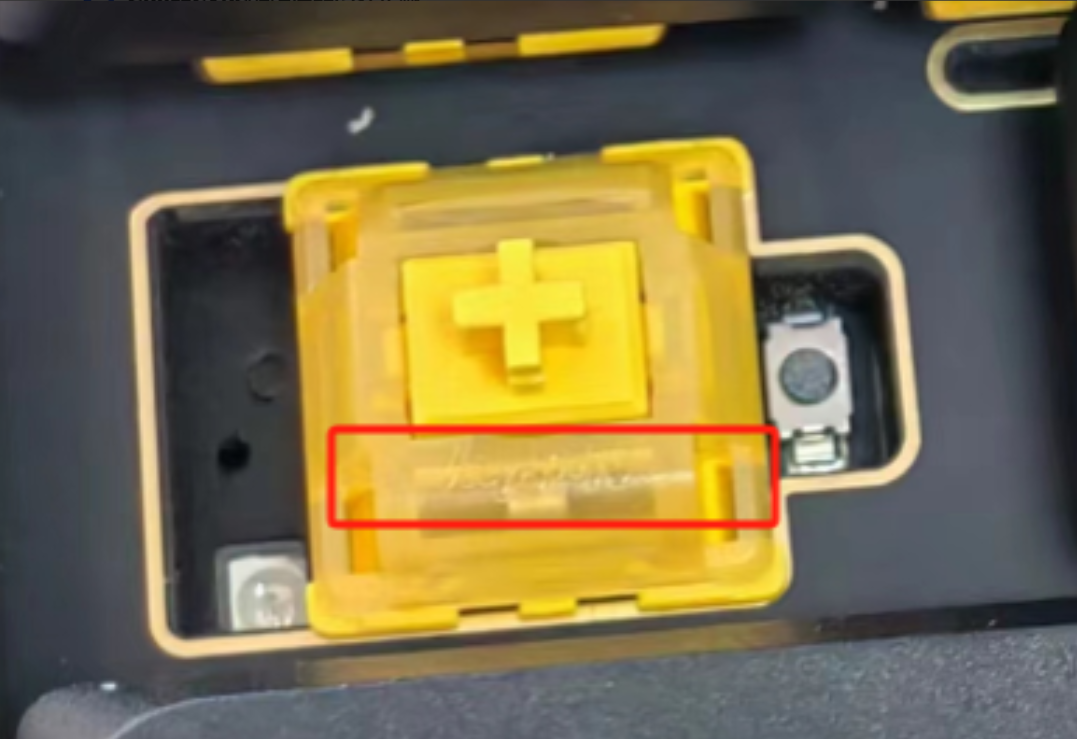

3. Verify the Final Installation
Press down firmly until the switch is fully seated. The final installed appearance should match the reference image below:
Press down firmly until the switch is fully seated. The final installed appearance should match the reference image below:
Video Tutorial
For a visual step-by-step demonstration, please refer to our official G80 switch installation tutorial video: https://youtu.be/74K1BSqR8AY
For a visual step-by-step demonstration, please refer to our official G80 switch installation tutorial video: https://youtu.be/74K1BSqR8AY
